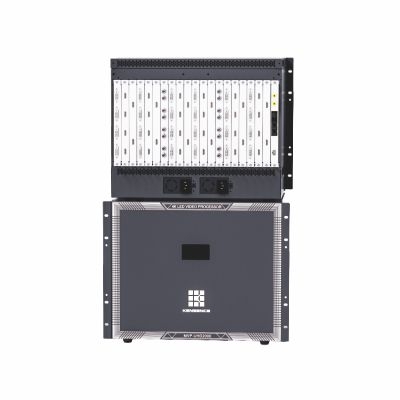

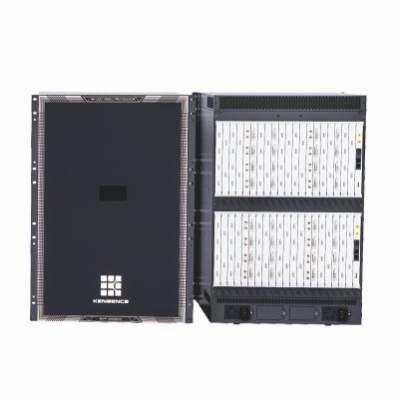

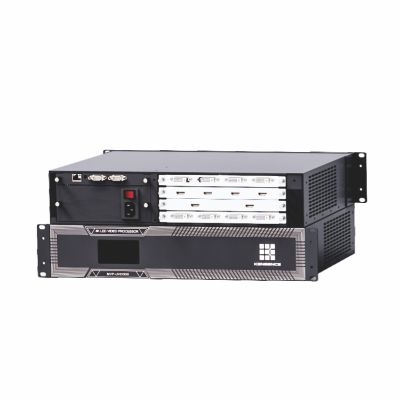

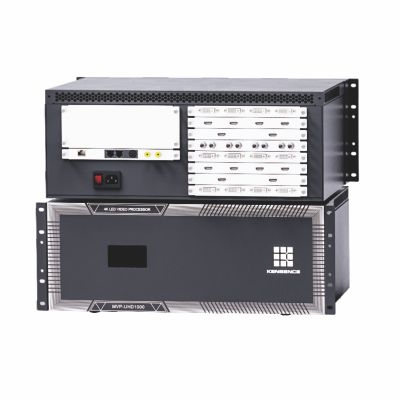

The MVP-UHD series is a 4K ultra-high-definition video wall splicing processor, which combines the technical advantages of traditional control products and integrates multiple functional technologies such as 4K high-resolution acquisition, group management, input and output custom resolution, image display and control processing, and visual management. In one, it provides an unprecedented control platform for a comprehensive visual display and control environment. It is suitable for environments with high requirements on the display environment. It fundamentally guarantees full real-time synchronous processing of all input and output signals, and the display screen has no delay, frame loss, The loss phenomenon occurs with powerful image processing functions. Products can be widely used in digital display, control command center, security monitoring center, conference video center, smart city information center, immersive experience, transportation, government, education, medical care, electric power, energy, media and other fields.
Features
Adopting modular and plug-in design, a single machine supports a maximum of 132 inputs and 76 outputs,
Supports a maximum of 152 mixed layers, and the position and size of the layers can be adjusted;
Support full screen brightness adjustment and single screen brightness adjustment;
Support input source cutting, signal source name remarks, etc.;
Support 256 user scenes, users can call and save scenes flexibly;
Support Genlock video source synchronization function, cascade synchronization between devices,
Achieve frame synchronization between screens;
Support signal hot backup function, which can backup two input signal sources;
Support 132 channels of signal source input, and the signal sources can be combined and mixed at will;
Support 76-channel output splicing, 152 screens displayed at the same time,Software debugging, hardware
operation at the same time;
Support multiple cascade control, with a larger display screen;
Support 4K@60Hz 4:4:4 input and output signal source;
Support PC software control, central control 232 protocol and mobile phone APP control;
Support primary and secondary authorization encryption management, configure keypad,
all scene modes are; Software and hardware can be used to switch and call;
Both the input and output are designed with mother and daughter cards, and any
combination of two can be mixed and matched;
Support multiple power supply redundancy technology, mutual backup between power supplies;
Support window static frame, brightness adjustment, seamless switching;
Output smart mode resolution, single port width 3840, height 2160;
Support PC scene, task timing, task carousel;
Any layer between all signals, roaming and zooming;
Support single output port can specify the resolution output;
Support resolution and display group management;
