16 x16 4k HDMI video matrix switcher Supports 4K@30HZ with EDID Scaler Switch HD video wall controller

Product Overview

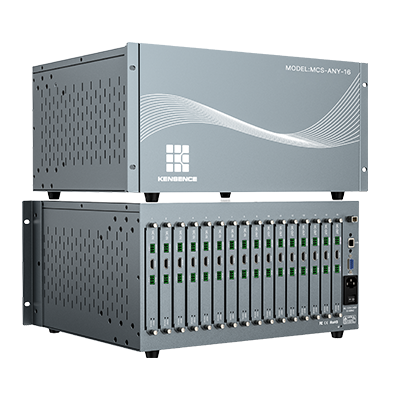

The MCS-ANY-16 matrix switcher system is an advanced HD matrix designed for large-scale, cross-region audio and video signal transmission and processing. Its unique features include:

Scalability: Users can expand the system easily by adding additional matrices and defining custom input/output configurations as needed.

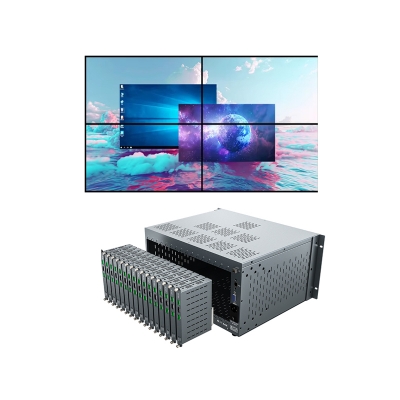

Asymmetric Design: This matrix switcher with video wall design allows for any combination of inputs and outputs, enhancing flexibility without the constraints of traditional configurations.

Stacking Visualization: Unlike traditional matrices, which have limited ports, the MCS-ANY-16 supports unlimited expansion through fiber or network connections, meeting users' growing needs conveniently.

Live Preview Function: The system allows real-time source and display previews, improving usability compared to traditional modular matrices that require separate devices for previewing.

The MCS-ANY-16 16x16 matrix switcher is ideal for applications in broadcasting, multimedia conference rooms, command centers, smart classrooms, and more.

Features

• Has 16 -channel of video ports, which can be configured to input or output any combination of 16 channels.

• Single-card and single-channel design for flexible configuration and maintenance; > Built-in intelligent card with recognition technology for automatic detection of card type, plug-and-play;

• Supports input signals: HDMI, DVI, up to 4K@30Hz resolution

• Supports otuput signals: HDMI, DVI, up to 4K@30Hz resolution

• Supports quad screen and the live preview of source and display

• Adopting the technology of seamless switching, no black screen, blue screen, tearing or flickering during switching

• Supports EDID management compatible with HDCP protocol

• Supports caption

• Has visualization software, What You See Is What You Get: The system provides a unique visualization control APP, which integrates audio, video, and control, and provides comprehensive control over signals, scenes, and usage, making it easy to manage audio and video control at command and control centers, large-scale conference centers, and other applications.

• Has multiple peripheral interfaces, including RS232, IO, network, and optical fiber

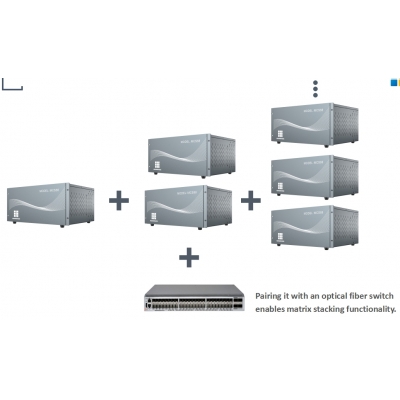

• Supports the stacking of multiple matrices through LAN port or fiber port

Signal Card

Model:MC-IN

• Supports EDID reading and calling

• Supports HDMI 1.3 and HDCP protocol

• Supports up to 1080P@60Hz of video resolution

• Support RS232 signal transparent transmission for controlling external devices

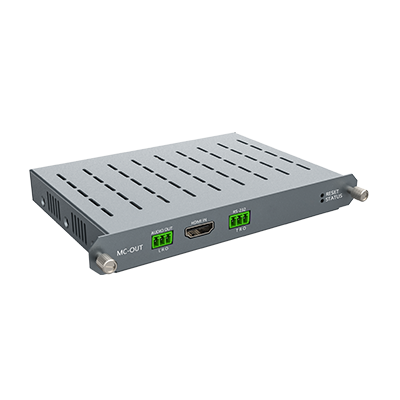

Model:MC-OUT

• Supports audio de-embedding


• Supports quad screen;Supports EDID reading and calling

• Supports HDMI 1.3 and HDCP protocol

• Supports up to 1080P@60Hz of video resolution

• Support RS232 signal transparent transmission for controlling external devices

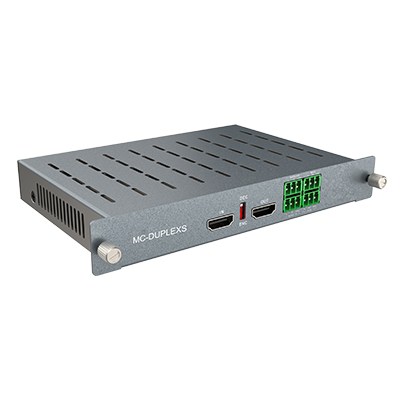

Model:MC-DUPLEXS

• Has 1 x HDMI input, 1 x HDMI output, 1 x audio input, 1 x audio output, 1 x LAN port, 1 x RS232, 1 x IR/IO multiplexing

• Supports maximum resolution 3840X2160@30 (backward compatible with standard resolution)

• Input mode with more than 16 video distribution capabilities; output mode supports four-screen split

• It can be set as input card or output card by dip switch.

Parameters

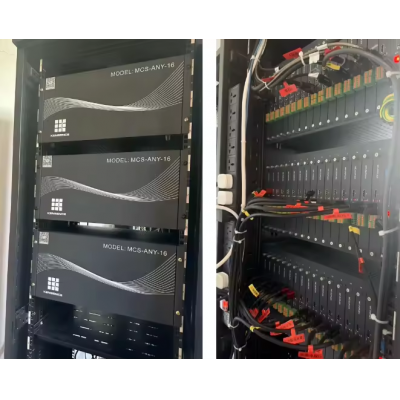

Application Example

Introducing our stackable matrix switcher, a powerful and cost-effective solution that stands out as your top choice for hdmi over ip matrix. This versatile matrix switcher not only enhances audio and video signal management but also offers unparalleled flexibility and scalability for various applications.
