Introduction

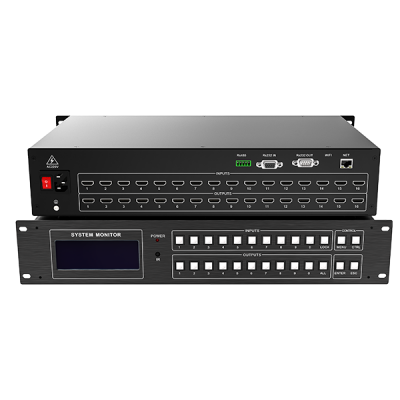

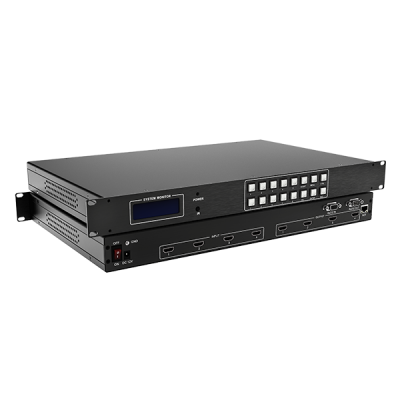

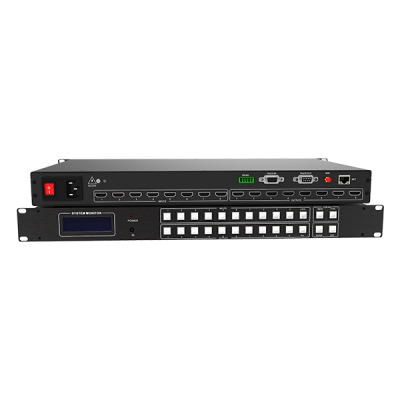

The HDMI curing matrix includes three specifications of 4*4/8*8/16*16, which respectively support 4-channel/8-channel/16-channel HDMI signal input and output,Users can choose several different ways to control the matrix switch : by using front panel buttons、RS232、RS485、WIFI(Option)、PC software control and remote control. HDMI Matrix offers solutions for home, office, digital entertainment center, control center, conference room, school and corporate training environments.
Features
HDMI 1.4 compliant
HDCP compliant. Input decryption, output is not encrypted
Allows up to eight HDMI audio/video devices to be independently switched to sixteen HDMI monitors, HDTV’s or projectors
The sixteen output channels could show the same or different source simultaneously no matter the source is HDCP or not
Reading and saving EDID function from displays
Supports high definition resolutions including: 3840 x 2160p@24/25/30Hz,1080p@60Hz, 1080i, 720p and other standard video formats
Switching modes: front panel buttons、RS232、RS485、IR、PC software control、WIFI(Option)
Specification | Parameter |
Input | Interface : Type‐A‐type HDMI Female Minimum Level:0.5Vp‐p Maximum Level:1.0Vp‐p Differential Impedance:100Ω Return Loss:‐30db@5MHz |
Output | Interface : HDMI A‐type(19 pin) Female Input Level:0.7Vp‐p Differential Impedance:100Ω Return Loss :‐30db@5MHz DC Compensation:5mV(Max) |
Signal Type | HDMI1.4 specification HDMI‐A all‐digital T.M.D.S. signal |
Protocol | Support HDMI1.4 Protocol,compatible with DVI1.0 Protocol |
Bandwidth | 340MHz |
Video Format Supported | 1080P/1080i/720P/576P/480P/576i/480i |
Serial interface | RS232,9‐pin female D‐type connector, Ports 2, 3 and 5 are directly connected Serial port parameters: 9600bps, 8‐bit data, 1 start bit, 1 stop bit, no check, no flow control |
Control Method | Panel Button、RS232、Remote Controller、PC software control |
Power Supply | ACIN 176V‐264V |
Power Consumption | 30~50W |
Operation Temperature | 0°C~45°C |
Relative Humidity | 10%―90% |
ESD Protection | Human‐body Model: ±8kV(Air‐gap discharge)/±4kV(Contact discharge) |
