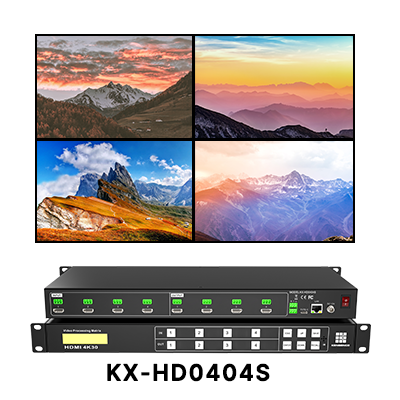

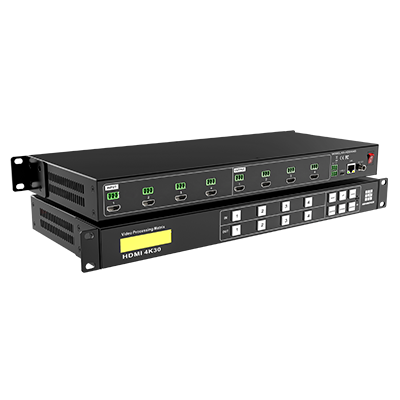

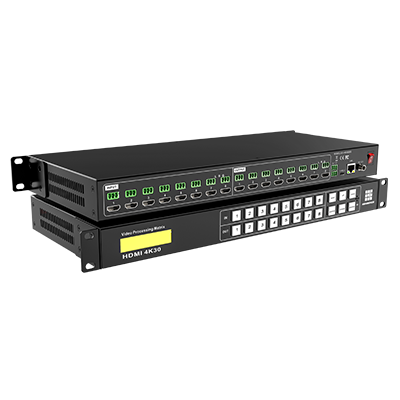

KX-HD0404/0808S 4K30 Seamless 4X4 8X8 HDMI Matrix Switch with RS232 TCP/IP EDID Control

Product Introduction

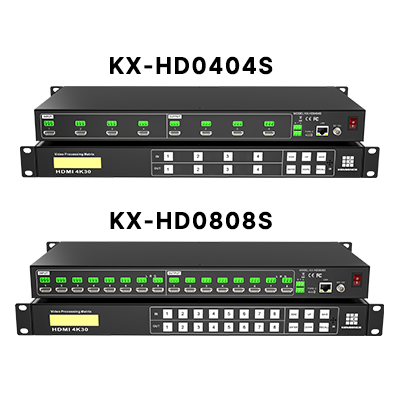

The Seamless 4x4 and 8X8 HDMI Matrix Switch supports the highest resolution of 4K@30Hz, along with support for 3D video, HDCP 1.4 specification, and 16-bit color depth. The matrix specifications are KX-HD0404S and KX-HD0808S, providing customers with a lossless frame and delay-free ultra-clear full digital experience. It offers a variety of control interfaces (RS232/TCP/IP) to meet customer control needs.

Application Scope: digital video multi-screen display systems, visual command and dispatch, safe city applications, medical teaching systems, satellite mapping, video conferencing, and video surveillance, as well as other fields requiring high-quality digital video display.

Seamless 4X4 8X8 HDMI Matrix Switch Product indicators

> Support panel buttons, IR infrared, RS232 commands and TCP/IP network port control;

> Supports resolution up to 4K x 2K@ 30 Hz and 1080P 3D;

> With intelligent EDID management function, the built-in EDID can be called through the dip switch, RS232 command, and Web Gui;

> Integrate multiple control protocols, conveniently and quickly used with various central control devices;

> Can provide remote support for engineering sites and customization of user-specific functions;

> Fast ultra-high definition full digital switching;

> Support USB firmware online upgrade;

> Support LCD or LED screen to display system status in real time;

> Support HDMI 1.4 , compatible with HDCP2.0 protocol and backward compatible;

> Transmit 4Kx2K@ 30 Hz 4:4:4, signal transmission ≥5 meters;

> Support input HDCP following, output supports HDCP management, command control;

> Powerful storage function, can store and call multiple pre-stored switching modes; has power-off memory function, with power-off site protection function;

Specifications

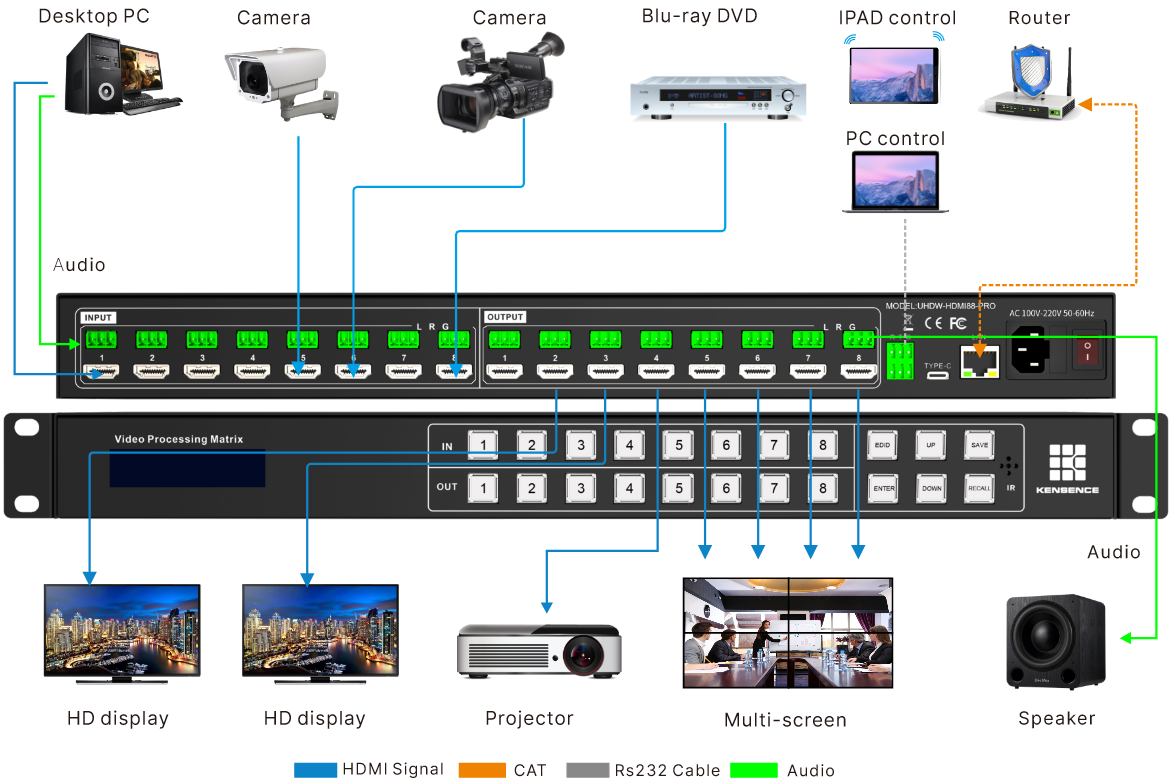

Application Example
