Product Description

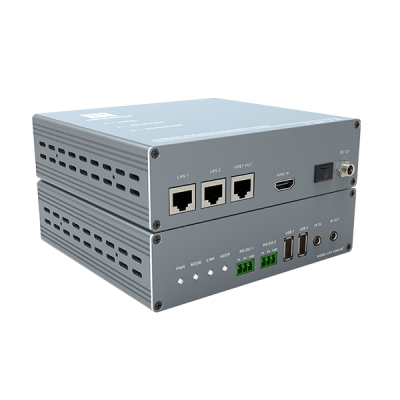

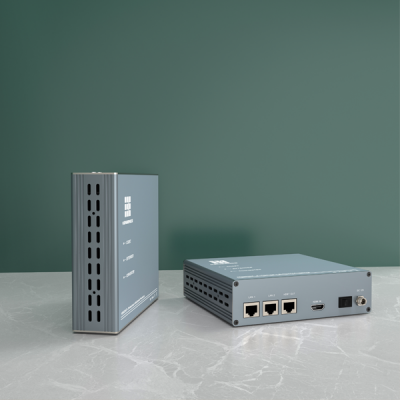

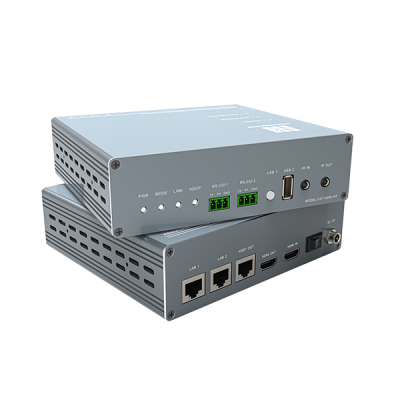

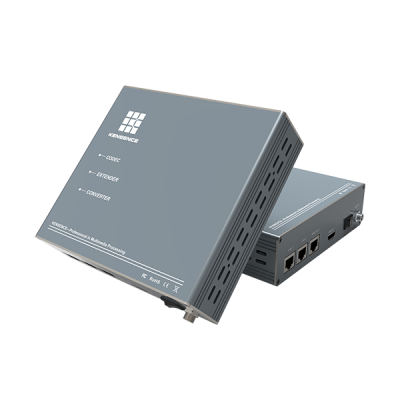

The CAT-HDMI-NT/R is a multifunctional HDMI extender. This product can extend HDMI signals up to 100 or 150 meters using CAT6 or CAT7 network cables. It supports the HDBaseT 2.0 standard, enabling zero delay between the signal source and the display device, which is essential for high-quality video transmission over long distances.
The transmitter and receiver are each equipped with a USB slave interface and a main interface for KVM (Keyboard, Video, Mouse) signal transmission. Additionally, it supports bidirectional infrared remote control signals and bidirectional RS-232 control signal transmission. This means users can control the input device from up to 150 meters away, and the output device can also be controlled from the transmitting terminal at the same distance.
The product features a new generation of low-power chip technology, allowing for 24-hour uninterrupted operation with low heat generation, ensuring stable performance and easy installation.
The CAT-HDMI-NT/R HDMI extender is suitable for various application areas, including video conferencing systems, multimedia signal broadcasting, security monitoring, radio and television, and smart communities.
Features
>Support USB 2.0 control;
>Support bidirectional RS-232 serial port transmission;
>Support 10M/100M Ethernet function;
>Support 4K@60Hz and 3D transmission 100 meters;
>Compatible with HDCP 2.2 and DVI 1.0 protocols;
>Support full HD resolution is 1080P@60Hz@24/36/48bit/pixels;
>Compatible with HDMI 1.4 and HDMI 2.0 (4K/2K@60Hz YcbCr 4:2:0);
>Support HDBaseT 2.0 standard, using CAT6/7 network cable transmission distance up to 150 meters;
>Support HD audio formats with LPCM2/5.1/7.1CH, Dolby Digital, DTS, Dolby TrueHD
>DTS-HD Master Audio;
Technical parameter
Typical topology
