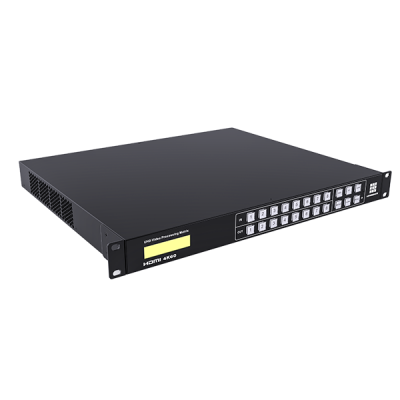

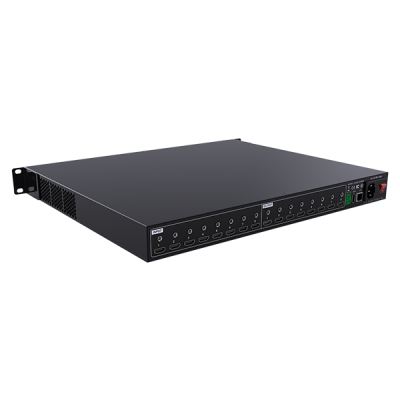

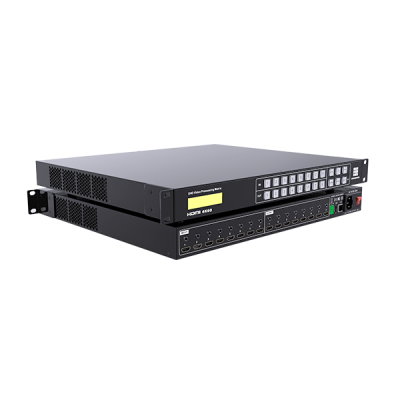

UHDW-HDMI44/88 Seamless Hdmi matrix It is a multi-functional ultra-high-definition matrix control all-in-one machine, with the function of 4*4/8*8 Seamless matrix switcher, and supports 4 screen/8 screen video wall display. It is a high-performance, high-bandwidth intelligent switching distribution device specially designed for ultra-high-definition video display systems. Each HDMI channel of the Seamless Hdmi matrix supports the acquisition and display of various resolution formats of 4K@60Hz and below, as well as common 3D formats. Built-in intelligent EDID control, can intelligently read and write the display device information, 8 input channels support independent EDID and can customize the resolution format of each output channel, which can be applied to any high-definition digital video system to meet the user's ultra-clear experience Demand.
Features
HDMI44 supports 4 HDMI input and output, HDMI88 supports 8 HDMI input and output;
Support 4-way/8-way 3.5mm independent audio signal input and output;
Support panel buttons, IR infrared, RS232 commands and TCP/IP network port control;
Support resolution up to 4K x 2K@60Hz, support 1080P 3D;
Support output resolution change, which can be selected through the EDID button;
Integrate a variety of control protocols, which can be used with various central control equipment conveniently and quickly;
Can provide on-site remote support and customization of user special functions;
Powerful storage function, can store and recall multiple pre-stored switching modes; with power-off memory function, with
interrupt Electric field protection function;
Fast ultra-clear all-digital switching;
Support USB firmware online upgrade;
Support LCD or LED screen to display system status in real time;
Support HDMI 2.0, compatible with HDCP2.2 protocol and backward compatible;
Transmission 4Kx2K@60Hz 4:4:4, signal transmission ≥5 meters;
Support input HDCP follow, output support HDCP management, command control;

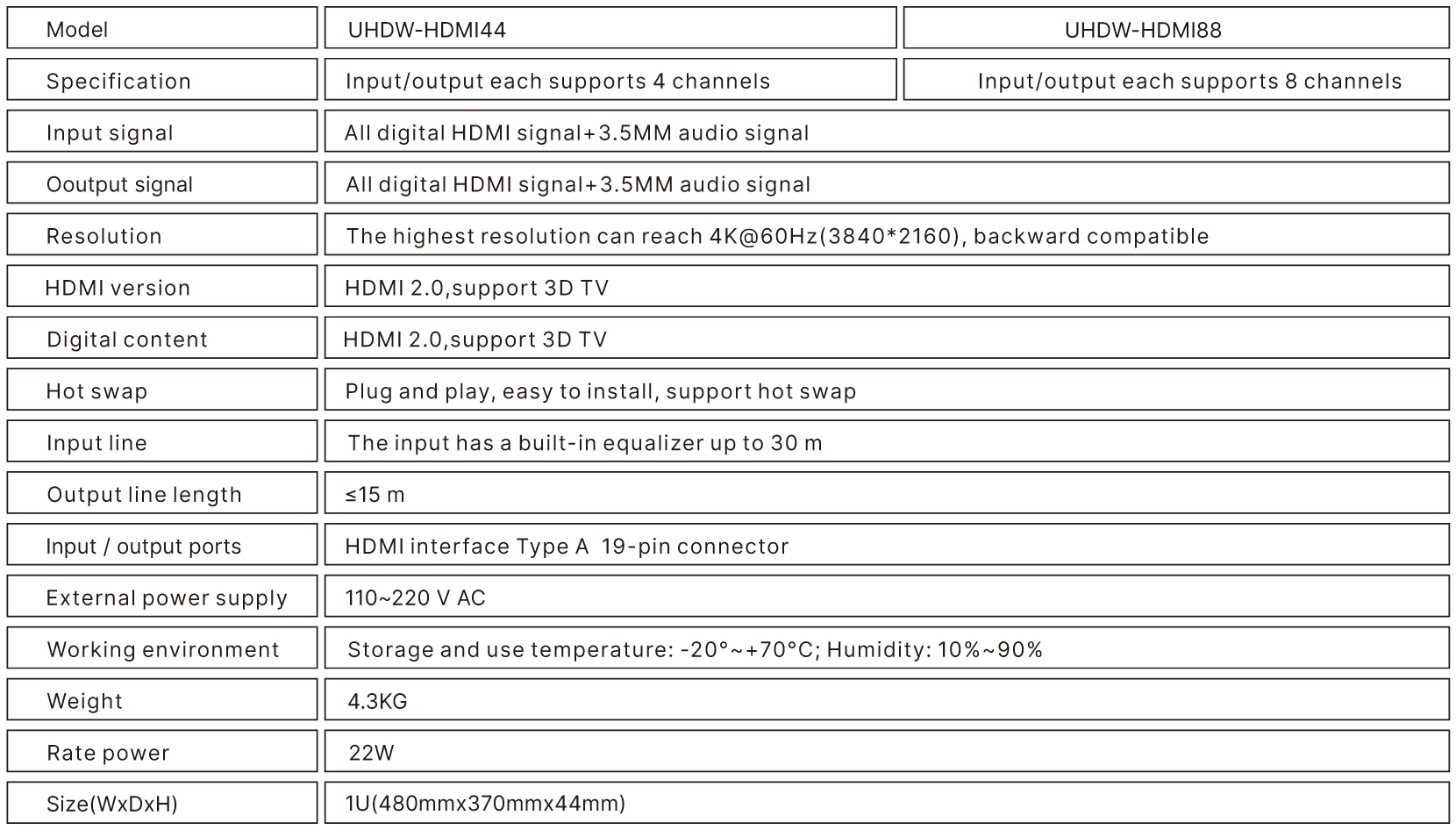

Technical parameter

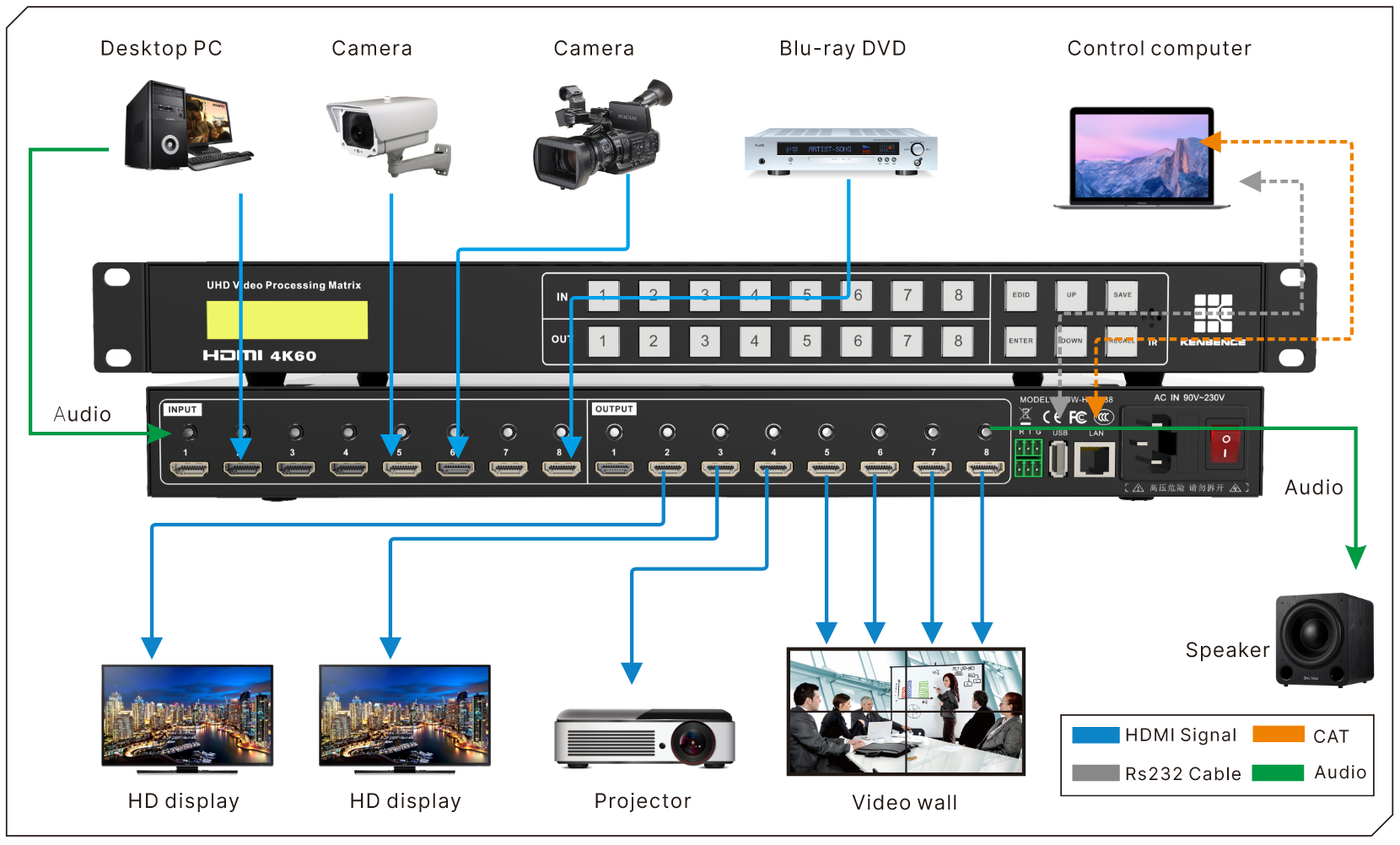

UHDW-HDMI44/88 Seamless Hdmi matrix Application Example
