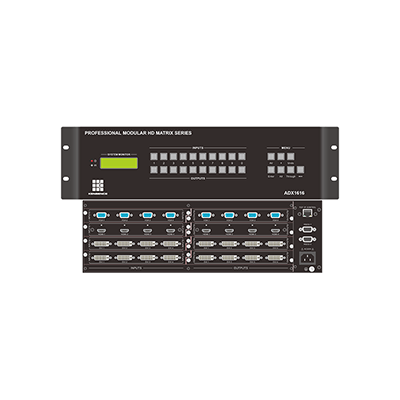

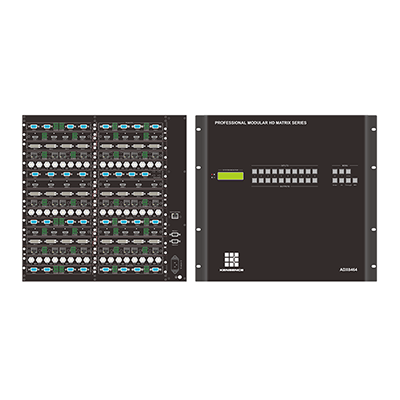

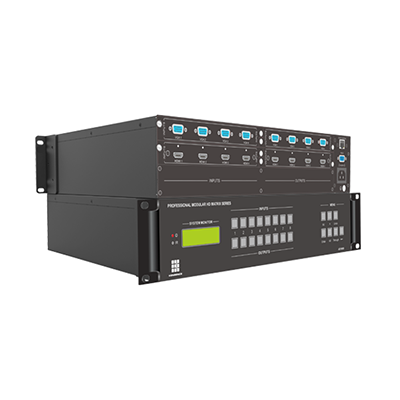

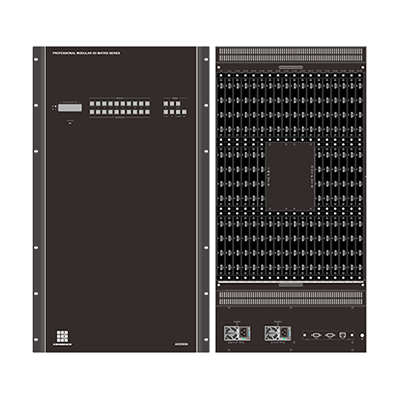

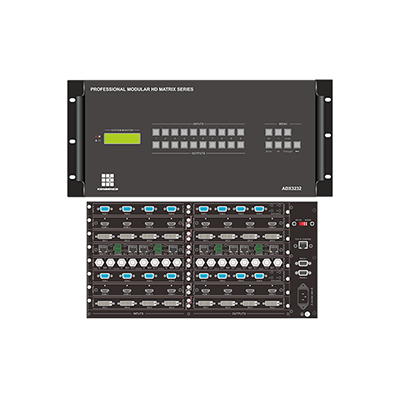

Product Overview
ADX series hybrid card 4k30 seamless matrix switcher is a high-performance audio and video signal professional switching equipment, compatible with different signal types input / output signal card, used for multiple signal input and output cross switching, providing independent audio and video signal input, output terminal. It can be arbitrarily matched with the input and output signal cards, and the seamless signal cards that can be inserted and matched include: HDMI, DVI, VGA, SDI, HDBT, CVBS, optical fiber and other seamless input/output signal cards. audio-visual issues. This Modular 4k30 seamless matrix switcher series of products are mainly used in radio and television projects, multimedia conference halls, large-screen display projects, TV teaching, command and control centers and other occasions. This product has functions such as power-off memory, audio and video synchronization, and has RS232 communication interface and TCP/IP control, which can be easily used with personal computers, remote control systems or various remote control equipment.
Functional characteristics
Modular design, supports any seamless input/output signal card such as HDMI, DVI, VGA, SDI, HDBT,
CVBS, optical fiber, etc., and can be freely matched to improve system flexibility.
The control method is flexible, with key operation, RS232 control function and infrared control function.
According to user needs, the network control port can be customized on the rear panel of the hybrid card
matrix series, which is convenient for customers to use with various control equipment.
Any combination of seamless boards can achieve seamless splicing display.
Support EDID learning function, support subtitle overlay function.
Real-time display of working status with LCD display and indicator lights.
Support for 10 groups of scene saving and recall functions.
Supports resolutions up to 4K@30Hz.
Supports audio and video switching from 8x8 to 96x96.
