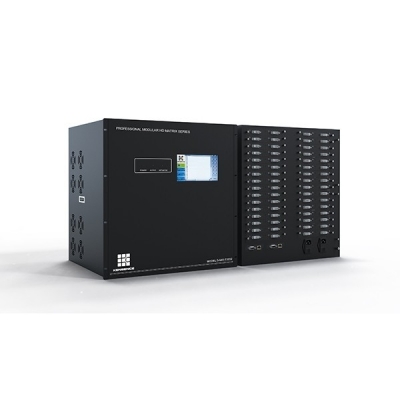

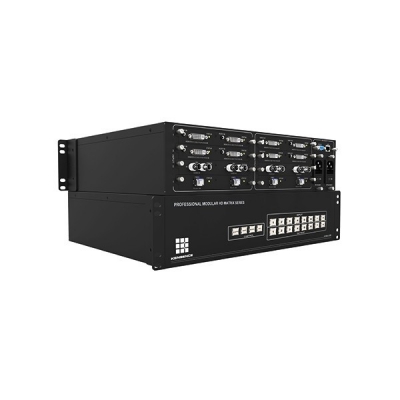

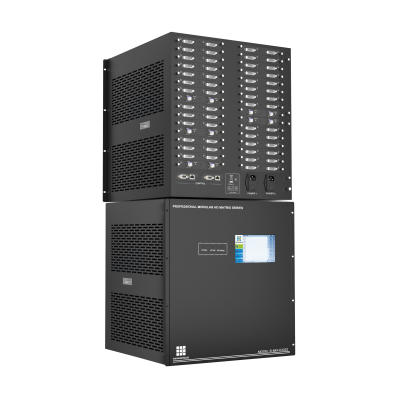

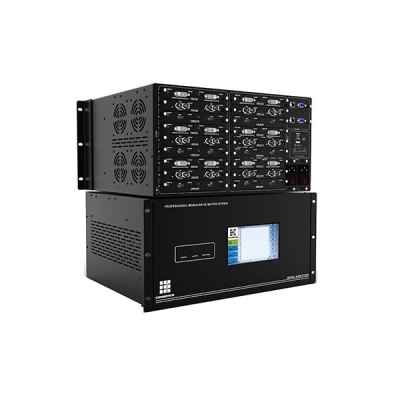

Standard S-MIX-E Series
The S-MIX-E series hybrid matrix switcher offers a modular solution that supports ultra-high-definition resolutions of 4Kx2K. It is engineered for high performance and reliability in 4K digital video display systems. With the ability to seamlessly switch between a variety of signal formats, including CVBS, YPbPr, AUDIO, HDBaseT, 3GSDI, Fiber, HDMI, DVI, and VGA, it boasts exceptional versatility.
Using advanced image technology,the hybrid matrix switcher guarantees swift transitions between signals without experiencing black screens or jitter. With matrix configurations ranging from 8x8, 18x18, 32x32, 72x72, to 144x144, it meets the diverse requirements of various users, offering a flexible and high-bandwidth solution suitable for any installation.
Functional Features
Modular Design: Accommodates any seamless input/output signal cards including HDMI, DVI, VGA, SDI, HDBT, CVBS, and Fiber. This feature allows for customizable combinations, enhancing the versatility of the system.
Flexible Control Options: The switcher includes key operation, RS232 control, and infrared control capabilities. Additionally, the rear panel can be tailored with network control ports according to user specifications, enabling integration with a variety of control devices.
Seamless Splicing Display: Supports seamless splicing display with any combination of seamless boards.
EDID Learning: Offers EDID learning capabilities along with subtitle overlay options.
Real-time Status Display: Features an LCD screen and indicator lights that provide real-time updates on operational status.
Scene Recall: Capable of saving and recalling up to 10 custom scene configurations.
High Resolution Support: Handles resolutions of up to 4K at 30Hz.
Audio/Video Switching: Facilitates audio and video switching across configurations ranging from 8x8 to 96x96.
